Resistor Series

CF. Carbon Film Resistor / Jumper Wire / Zero Ohm

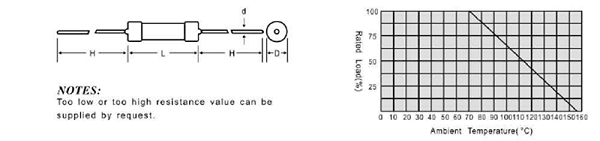

Dimension
Derating curve

Specification:

Power Rating Max Working Voltage Max Overload Voltage Dimension (mm) Resistance Range
L D H d±0.05
1/6W, 1/8W 200V 400V 3.2±0.2 1.8±0.2 28±2.0 0.43 Standard

1Ω - 10MΩ
1/4WS 200V 400V 3.0±0.2 1.8±0.2 28±2.0 0.43
1/4W 250V 500V 6.5±0.5 2.3±0.5 28±2.0 0.50
1/2WS 250V 500V 6.5±0.5 2.3±0.5 28±2.0 0.50
1/2W 350V 700V 9.5±0.5 3.2±0.5 26±2.0 0.60
1WS 500V 1000V 9.5±0.5 3.2±0.5 28±2.0 0.60
1W 500V 1000V 11.5±1.0 4.5±0.5 25±2.0 0.70
2WS 500V 1000V 11.5±1.0 4.5±0.5 35±3.0 0.70
2W 500V 1000V 15.5±1.0 5.0±0.5 33±3.0 0.75
3W 500V 1000V 17.5±1.0 6.0±0.5 38±3.0 0.75

Electrical performance:

Test Items Condition Spec
Short time overload 2.5 times of RCWV for 5 seconds ±(1%+0.05Ω)
Load life 70°C at rated power 1.5hrs on, 0.5hr off, for 1000hrs ±(5%+0.05Ω)
Dielectric withstand voltage Max overload voltage 1 minute ±(0.5%+0.05Ω)
Temperature cycling -30°C/+85°C for 5 cycles ±(1%+0.05Ω)
Insulation resistance D.C. 500V 1000MΩ
Moisture-proof load life 40°C 95% RH 1.5hrs on, 0.5hr off, cycle for 1000hrs ±(5%+0.05Ω)
Soldering heat resistance 350°C for 3.5 secs ±(1%+0.05Ω)
ppm/°C
Temp. Coeff.		 0±450 0 ~ -700 0 ~ -1000 0 ~ -1300
<47KΩ 51KΩ ~ 100KΩ 110KΩ ~ 330KΩ Over 360KΩ

* RCWV: Rated Conditions Working Voltage



Jumper Wires

Type L±1 d +0.01/-0.05
JW05 61.5 0.5
JW06 61.5 0.6
JW07 61.5 0.7

unit: mm



Zero Ohm

Type L D H d±1
ZO 1/6W 3.2±0.2 1.5±0.2 28±2.0 0.45
ZO 1/4W 6.5±0.5 2.3±0.5 28±2.0 0.52

unit: mm



Tape Type Dimension

Watt Type Size
A B
±0.5		 C
±0.5		 D
max		 E
max
«1/4W T26 26 +1/-0 5 5 0.6 1.2
T52 52 +1/-0 5 5 0.6 1.2
1/2W T52 52 +1/-0 5 5 0.6 1.2
1W T73 73 +1.5/-0 5 5 0.6 1.2

unit: mm

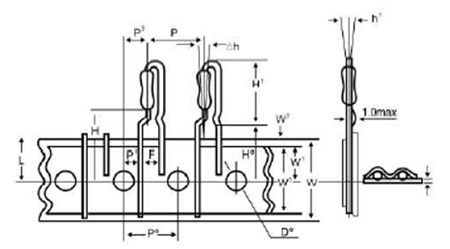

PN-type Radial Tape Type Dimension



Dimension
P 12.7±1.0   0±0.5 H0 16.0±0.5
P0 12.7±0.3 W 18.0 +1.0/-0.5 H1 12.0 max
P1 3.35±0.7 W0 12.5 D0 4.0±0.3
P2 6.35±1.0 W1 9.0±0.5 t 0.7±0.2
F 5.0±0.5 W2 max L 11.0 max
∆h 0±2.0 H 20±0.5
