Resistor Series

MGR. Metal Glazed Resistor

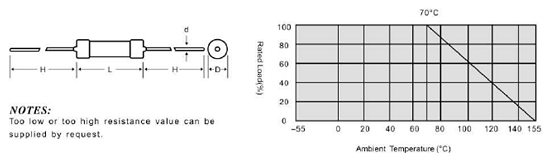

Dimension



Specification

Type Power Rating Tolerance PPM/°C Resistance Range Max Working Voltage Dielectric Withstand Voltage Dimension (mm)
L D H d
MGR 1/4W ±1%
±5%		 ±200 1-33M 500 500V 7.0±1 2.5±0.5 26±2 0.6
1/2W 1-68M 1000 600V 10.5±1 3.9±0.5
1W 1-100M 1500 800V 14.0±1 5.5±0.5 0.8
2W 1-100M 2000 17.0±1 6.6±0.5
3W 1-100M 2500 1000V 18.0±1 7.5±0.5
5W 1-100M 3000 25.0±1 9.5±0.5



Electrical Performance

Test Item Test Method Spec.
Adhesion solderability 235°C±5°C for 2+0.5 sec 95%
Short-time overload 2.5 times of RCWV for 5 sec ∆R« ±(1%R+0.05Ω)
Intermittent overload voltage (1+25)x10:2.5 times rated voltage 1sec on, 25sec off for 1000 cycles ∆R« ±(2%R+0.1Ω)
Load life 70°C at rated voltage for 1000hrs ∆R« ±(5%R+0.1Ω)
Load life in humidity 40°C 90~95% RH 240H ∆R« ±(5%R+0.1Ω)
Accident overload 16 or 25 times at power voltage Non-flammable
Temperature cycling -55°C ~ +155°C for 5 cycles ∆R« ±(1%R+0.05Ω)



Film
